8SC/CJ
DESIGNED FOR EXTRA HEAVY
ELECTRICAL LOADS AND HIGH
CHARGE REQUIREMENTS AT IDLE
Applications:
- Heavy Duty Trucks
- Emergency Vehicles
- Off-Highway
- Agricultural
|
Features:
- Untegral charging system that can handle heavy belt loads and extremely high electrical loads on today's large diesel or gas engines
- Solid rectifier lead frame, advanced avalanche diodes, welded connections
- Simplified wiring - insulated three wire system
- Built-in "Load Dump" protected regulator with solid state circuitry and external adjustment
- SEA double lug mount with adjustable steel bushing and steel insert
- Heavy-duty 5/16" output stud for superior electrical connections
- Special AC terminal for connection of tachometers and other instruments
- "R" terminal for indicator lamp hook-up
- Long life copper graphite brushes enclosed in a dirt resistant chamber to extend brush life
- Trash screens are available for protection againts foreign particles
|

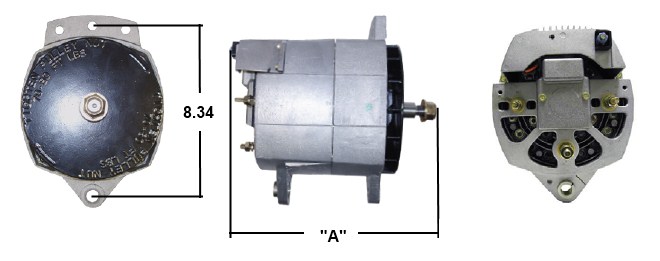

J180 MOUNT
[8.34]
| PART NO. |
SALES NO. |
VOLTS |
AMPS |
MOUNT |
B+ |
B- |
ROTATE |
REGULATOR |
DIM. "A" |
FEATURE |
| 8LHC2010Z |
110-254 |
12 |
160 |
J-180 |
5/16-24 |
1/4-28 |
BI-DIR |
BDIK |
9.87 |
2,5 |
| SCJ2226 |
SCJ2226 |
12 |
160 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
10.87 |
1,5 |
| SCJ2231 |
SCJ2231 |
12 |
160 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BCEH |
10.89 |
1,4,5 |
| 8SC2020Z |
110-563 |
12 |
185 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDI |
10.41 |
5 |
| 8SC2023Z |
110-565 |
12 |
185 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
10.35 |
5 |
| SCJ2227 |
SCJ2227 |
12 |
185 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
10.87 |
1,5 |
| SCJ2235 |
SCJ2235 |
12 |
185 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
10.87 |
1 |
| 8SC2282VG |
8SC2282VG |
12 |
185 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
10.87 |
1,5 |
| 8SC3014U |
110-298 |
24 |
100 |
J-180 |
M8X1.25 |
M6X1.25 |
CW |
BDH |
9.86 |
5,6 |
| 8SC3019U |
110-316 |
24 |
100 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDH |
9.41 |
5,6 |
| 8SC3169U |
8SC3169U |
24 |
100 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDGK |
10.55 |
5,6 |
| 8SC3017VA |
110-575 |
24 |
150 |
J-180 |
5/16-24 |
1/4-28 |
CW |
ACH |
10.41 |
5 |
| 8SC3018VA |
110-576 |
24 |
150 |
J-180 |
5/16-24 |
1/4-28 |
CW |
ACH |
10.41 |
5 |
| 8SC3068V |
110-431 |
24 |
150 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDG |
10.41 |
5,6 |
| 8SC3110V |
110-568 |
24 |
150 |
J-180 |
5/16-24 |
1/4-28 |
CW |
ACG |
10.41 |
5 |
| SCJ3292 |
SCJ3292 |
24 |
150 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
10.55 |
1,5 |
| SCJ3218 |
SCJ3218 |
24 |
170 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDIK |
12.90 |
1,3,5,7 |
| 8SC3009ZA |
110-258 |
24 |
175 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDG |
10.41 |
5,6 |
| 8SC3029Z |
110-569 |
24 |
175 |
J-180 |
5/16-24 |
1/4-28 |
CW |
BDG |
10.41 |
5,6 |
|
Specyfications:
- System voltage: 12/24 Volt
- Frame: 6 1/2" / 165mm
- Shaft diameter: .8736 - .8741
Regulator Codes:
Feature Codes:
- 1 Dust Shield/Trash Screen
- 2 E-coat
- 3 Air Inlet Nozzle
- 4 Secondary D+ Terminal
- 5 High temp rated
- 6 Indicator Light Terminal
- 7 Pulley
|
